08-01 Safety devices

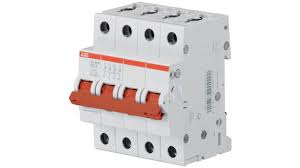

Isolator
Disconnects residence from electrical mains
Often a miniature circuit breaker is used as the isolator.
Cartridge Fuse
Single-use cartridge fuse
Residual Current Device (RCD) and Residual Current Circuit Breaker (RCCB)
Senses current imbalance between Live and Neutral
If Live current ≠ Neutral current, some current must be travelling through Earth
Trip if imbalance > RCD sensitivity
Malaysian Law
I∆n = 100mA, for whole-house fire protection
I∆n = 30mA, for electric shock protection
I∆n = 10mA, for electric shock protection in wet areas (shower, bathroom)
Test monthly

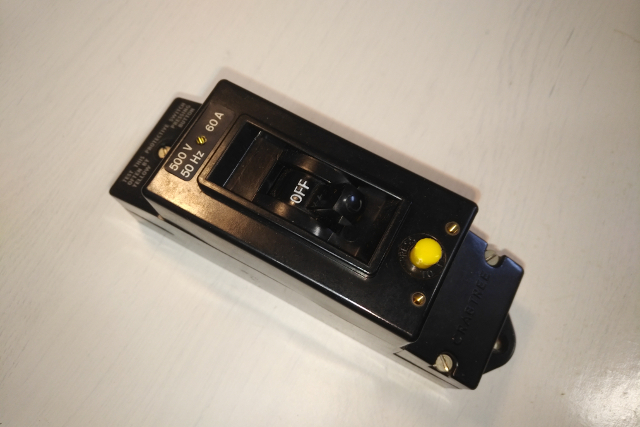

Earth Leakage Circuit Breaker (ELCB)
Senses current current flow through Protective Earth conductor
Will not trip if Earth wire is disconnected between the appliance and the DB
Superseded now by RCDs / RCCBs
Miniature Circuit Breaker (MCB)
